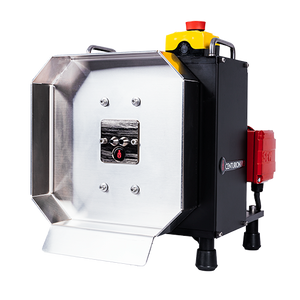

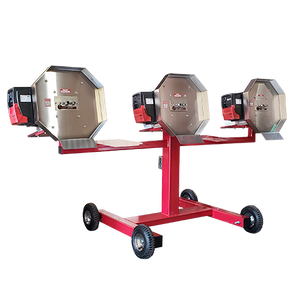

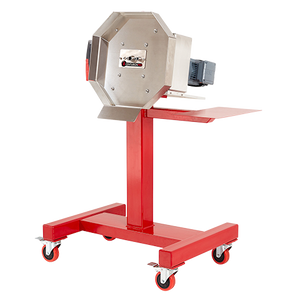

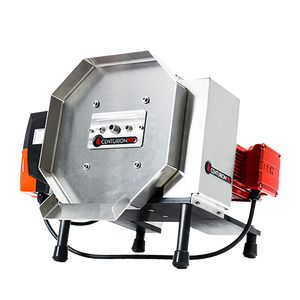

HP BUCKERS
|
|
|
| |
|---|---|---|---|---|
| Input Voltage | NA: 110V, 60Hz, Single Phase EU, AUS: 220V, 50Hz, Single Phase | NA: 120V, 60Hz Single Phase EU, AUS: 240V, 50Hz Single Phase | NA: 5 Amp - 120V, 60Hz Single Phase EU,AUS: 2.5 Amp - 240V, 50Hz Single Phase | NA: 15 Amp - 120V, 60Hz, Single Phase EU,AUS: 7.5 Amp - 240V, 50Hz Single Phase |
| Current Draw | NA: 1.24 Amp EU, AUS: 1.37 Amp | NA: < 6A Operating EU, AUS: < 3A Operating | < 2.5A Operating | 7.5A Operating |
| Circuit Breaker Required | NA: 15A/120V- Not GFCI Compatible EU, AUS: 15A/220V - Not GFCI Compatible | NA: 15A/120V - Not GFCI Compatible EU, AUS: 15A/220V - Not GFCI Compatible | NA: 15A/120V - Not GFCI Compatible EU, AUS: 15A/220V - Not GFCI Compatible | NA: 20A/120V- Not GFCI Compatible EU, AUS: 20A/220V- Not GFCI Compatible |
| Dimensions | 18″ L x 15″ W x 17″ H | 22″ L x 16″ W x 20″ H | 37″ L x 32.5″ W x 59″ H | 93″ L x 32.5″ W x 52″ H |
| Weight | 46lbs/21kg | 97lbs/44kg | 198lbs/90kg | 471lbs/214kg |
| Variable Speed | Yes | Yes | Yes | Yes |
| Drive Motor | 0.33 hp 1675 RPM | 0.75 hp, IP54 1690 RPM | 0.75 HP, IP54 1690 RPM | 0.75 HP, IP54 (x3) 1690 RPM(x3) |
| Feed Entry Sizes | 2-hole (1/4″, 3/8″) | 3-hole (1/4″, 3/8″, 1/2″) | 5-hole (3/16″, 1/4″, 3/8″, 1/2″, 3/4″) | 5-hole (3/16″, 1/4″, 3/8″, 1/2″, 3/4″) |
| Feed Types | Dry: Up to 15 lbs/hr Wet: Up to 75 lbs/hr | Dry: Up to 25 lbs/hr Wet: Up to 125 lbs/hr | Dry: Up to 35 lbs/hr Wet: Up to 175 lbs/hr | Dry: Up to 100 lbs/hr Wet: Up to 500 lbs/hr |
| Roller Sets | — | Neoprene Rubber | Neoprene Rubber | Neoprene Rubber |
| Reverse Operation | — | Yes | Yes | Yes |
| Duty Cycle | — | Continuous Pull Speed: 10-30 in/s Pull Strength: > 400 lbs | Continuous Pull Speed: 10-30 in/s Pull Strength: > 400 lbs | Continuous Pull Speed: 10-30 in/s Pull Strength: > 400 lbs |
| Primary Materials | 304 Stainless Steel / Aluminum | 304 Stainless Steel / Aluminum | 304 Stainless Steel / Aluminum | 304 Stainless Steel / Aluminum |
| Optional Stand | Add on | Add on | Included | Included |
| Warranty | 2 years | 5 years | 10 years | 10 years |

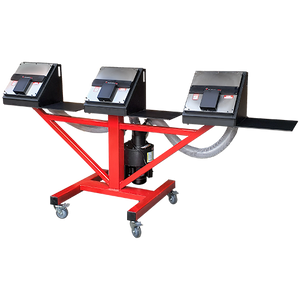

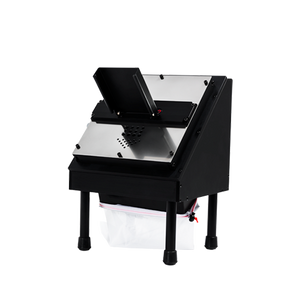

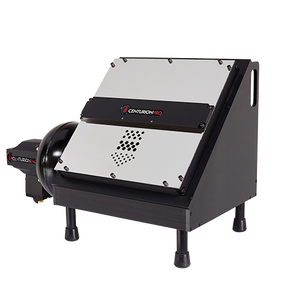

GC BUCKERS
|
|
| |
|---|---|---|---|
| Input Voltage | NA: 120V, 60Hz Single Phase EU, AUS: 240V, 50Hz Single Phase | NA: 6 Amp - 110V, 60Hz Single Phase EU, AUS: 3 Amp - 220V, 50Hz Single Phase | NA: 25 Amp - 110V, 60Hz Single Phase EU, AUS: 9 Amp - 220V, 50Hz Single Phase |
| Current Draw | NA: < 6A Operating EU, AUS: < 3A Operating | < 3A Operating | < 23A Operating |
| Circuit Breaker Required | NA: 15A/120V EU, AUS: 15A/220V | NA: 15A/120V EU, AUS: 15A/220V | NA: 30A/120V EU, AUS: 20A/220V |
| Dimensions | 15″ L x 17″ W x 19″ H | 15″ L x 27.5″ W x 18″ H | 102″ L x 32.5″ W x 55″ H |
| Weight | 46lbs/21kg | 65lbs/29.5kg | 391lbs/212kg |
| Variable Speed | Yes | Yes | Yes |
| Drive Motor | 0.25 HP 1750 RPM | 0.25 hp, IP54 1750 RPM | 0.25 HP(x3), IP54 1690 RPM |
| Feed Entry Sizes | 3-hole (3/16″, 1/4″, 3/8″) | 3-hole (3/16″, 1/4″, 3/8″) | 3-hole (3/16″, 1/4″, 3/8″) |
| Feed Types | Wet/Dry | Wet/Dry | Wet/Dry |
| Feed Throughput | Dry: Up to 4 lbs/hr Wet: Up to 20 lbs/hr | Dry: Up to 8 lbs/hr Wet: Up to 40 lbs/hr | Dry: Up to 24 lbs/hr Wet: Up to 120 lbs/hr |
| Primary Materials | 304 Stainless Steel / Aluminum | 304 Stainless Steel / Aluminum | 304 Stainless Steel / Aluminum |
| Optional Stand | NA | Add on | Included |
| Warranty | 2 years | 5 years | 5 years |
